Thermal Release Tape-TS600D

Brand Name : KHJ

Model Number : TS600D

Place of Origin : China

Contact Now

Thermal Release Tape-TS600D

Description

TS600D is a Blue thermal release tape with high initial viscosity. At (105-110℃), The stickiness of the adhesive surface disappears and automatic separation from the object to be adhered can be achieved.

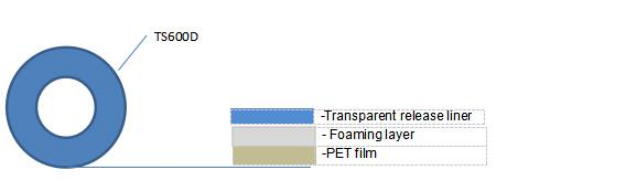

Construction

Thermal Release Tape-TS600D

Features

● Easily peeled off by heat treatment at any time

● Initial temperature resistance and will not re-tack

● RoHS Compliant

Application

This product is suitable for temporarily fixing various types of components,

ceramics, glass, metal plates, etc., and is suitable for various electronic

industry specialties. kind of cutting protection

Properties

Item		Typical Value		Test Method
		Imperial	Metric
Backing		4.0mil	0.1mm	/
Total Thickness		6.1mil	0.155±0.005mm	/
Adhesion	Before heating	0.44-1.1lbs/in	2-5 N/25mm	GBT 2792-2014
	After heating	0	0
Tensile Strength		≥55bs/in	≥3.5(KN/M)	GBT 30776-2014
Elongation		≥120%	≥120%	GBT 30776-2014

Recommended debonding process: 110℃*4-15min(based on the heating method and the thermal conductivity and heat transfer uniformity of the attached object)

Storage

● Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.

● Shelf life: 12 months from the date of manufacture when stored in initial packing.

Precaution Reminder

● Surface should be clean, dry, free of dust, oil or other contaminants.

● Proper pressure required by roller, hand or press when applying.

● Avoid repeat sticking to prevent adhesion decrease.

Notes

Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
